MA-850
Compact Slitting Machine
MODEL MA-850
20-820mm Slitting Machine for Narrow Strip RFQs

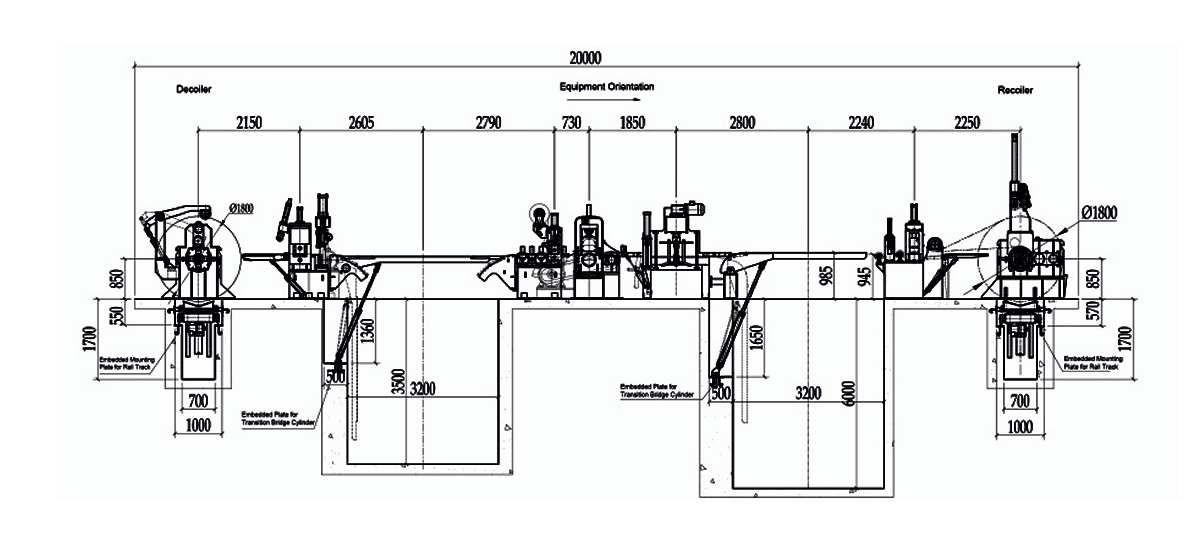

Technical Drawings & 3D Models
Narrow-strip slitting with PLC recipes and RFQ evidence
Automatic coil feeding and recoiling system
Advanced touchscreen PLC controls
Easy blade setup and adjustment
Technical Specifications
| Model | MA-850 |
|---|---|
| Thickness | 0.3mm-3.0mm | 1.5mm-6mm | 2mm-8mm | 4mm-12mm |
| Speed | 1-250m/min |
| Working Size | 20-820mm |
| Weight | 10T – 35T (Customizable) |
| Total Power | 138.5KW |
Key Features & Benefits
20-820 mm compact slitting platform up to 250 m/min
Automatic decoiling, tension control, recoiling, and separator setup
Stainless, carbon steel, aluminum, galvanized, and copper strip programs
Knife setup, width tolerance, burr limit, and first-piece acceptance
Narrow-strip output for HVAC, appliance, and light fabrication feedstock
Compact footprint for plants with limited floor space and crane routes
Guarding, emergency stop, recipe handoff, and operator release records
