MD-1650

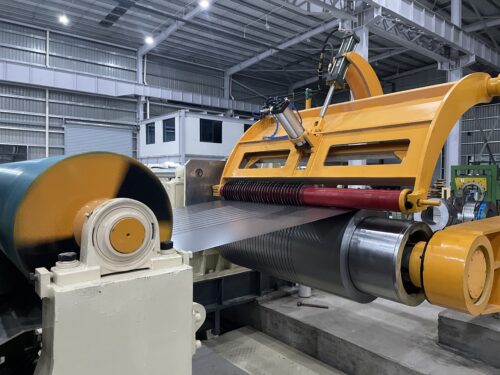

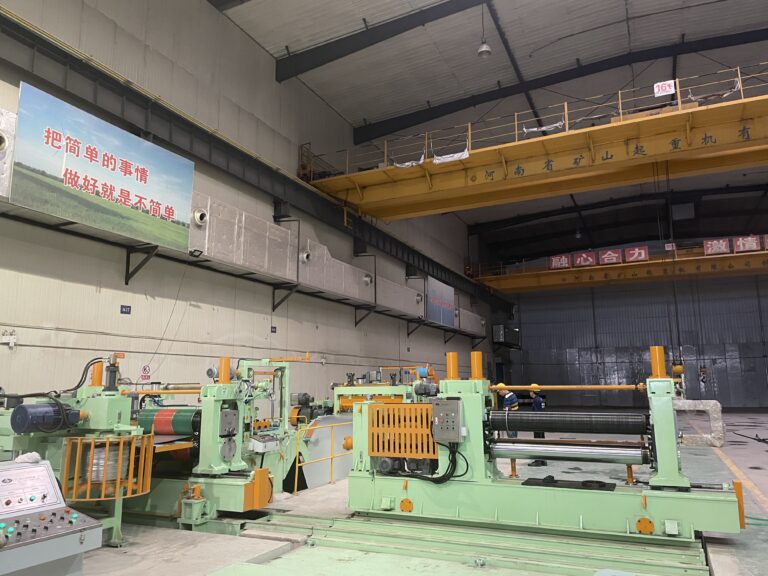

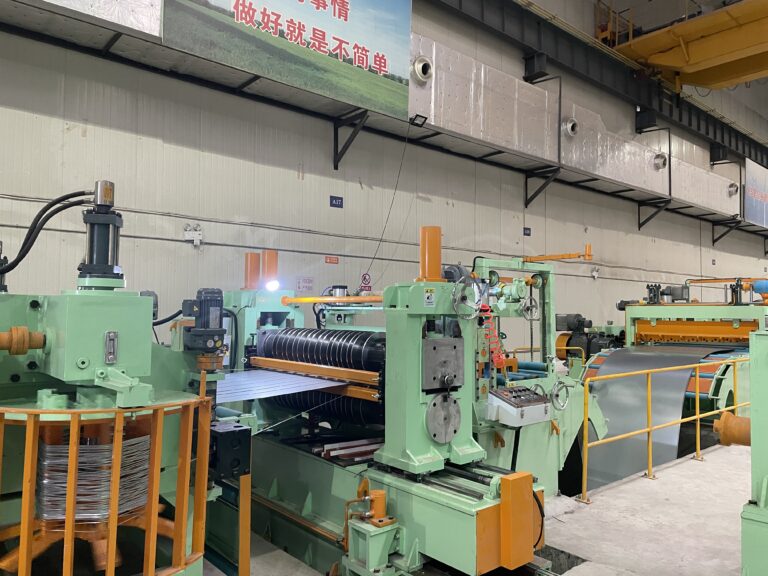

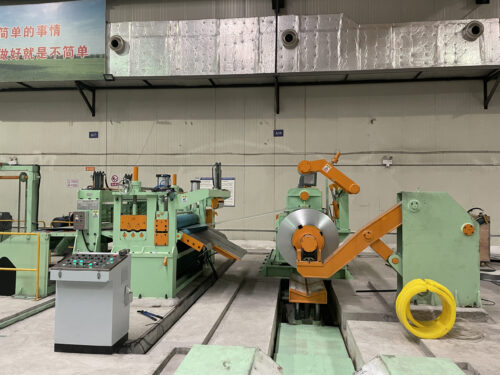

Mid-Width Slitting Machine
MODEL MD-1650
300-1600mm Slitting Machine for Mixed-Width Strip

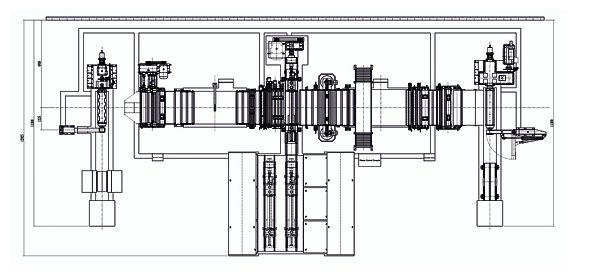

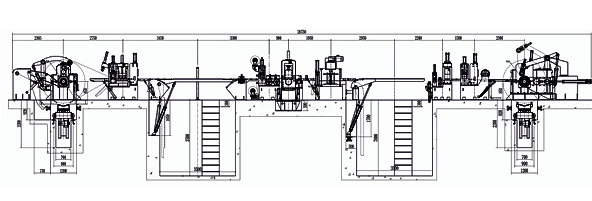

Technical Drawings & 3D Models
Mixed-width slitting with tension, burr, and recoiling evidence

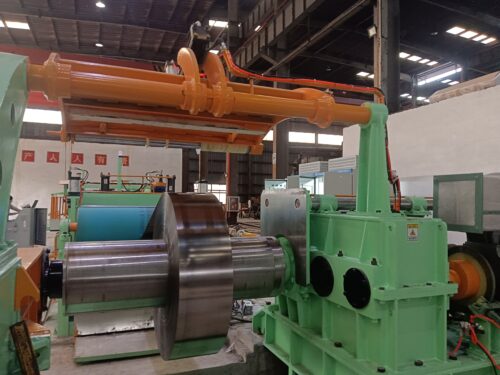

Automatic coil feeding and recoiling system
Advanced touchscreen PLC controls
Easy blade setup and adjustment
Technical Specifications
Model MD-1650
Thickness 0.3mm-3.0mm | 1.5mm-6mm | 2mm-8mm | 4mm-12mm
Speed 1-250m/min
Working Size 300mm-1600mm
Weight 10t-35t (Customizable)
Total Power 422.5KW
Key Features & Benefits
300-1600 mm slitting platform up to 250 m/min
Decoiling, tension control, stable recoiling, and separator setup
Mixed-width strip orders for service centers and tube or roll-forming feedstock
Knife setup, edge quality, burr limit, and recipe repeatability records
Stainless, carbon steel, aluminum, galvanized, and copper strip support
Balanced width class between MA-1350 and wide-coil MD-2200 programs
Emergency stop, guarding, operator handoff, and FAT sample release records
