How Does a Cut-to-Length Line Work?
The CTL process begins with loading a metal coil onto a hydraulic decoiler, where it’s unwound under controlled tension to prevent buckling. The strip then enters a precision leveler that straightens imperfections like coil set, achieving flatness tolerances as tight as 0.5 mm per meter. Servo-driven feeders advance the material to the exact length, typically measured by encoders with ±0.1 mm accuracy, before a hydraulic shear slices it cleanly—either in stop-and-go mode for precision or flying shear for continuous high-speed operation up to 80 m/min on light gauges. Finally, pneumatic stackers collect the sheets in neat bundles, often with automated destacking for immediate use.
This workflow not only boosts throughput but also integrates Industry 4.0 features like real-time monitoring via PLC systems, reducing downtime by up to 30% in modern setups.
Key Steps in the Cut-to-Length Process
- Decoiling and Entry: Coils weighing 10-35 tons are positioned and unwound, with edge guides ensuring alignment to avoid defects.
- Leveling and Straightening: Multi-roll levelers remove stresses, critical for materials like high-strength steel up to 80,000 PSI yield.
- Measuring and Feeding: Digital controls set lengths from 300 mm to over 6 meters, using gripper or roller feeds for non-marking surfaces.
- Shearing: Guillotine blades cut with minimal burrs, while rotary options handle thicker gauges without stopping the line.
- Stacking and Exit: Sheets are lifted and stacked automatically, with options for magnetic or vacuum handling to protect finishes.
For more on integrating these steps seamlessly, explore our cut-to-length line overview.
Essential Components of a Modern Cut-to-Length Machine
A robust CTL line relies on interconnected systems for reliability and precision. The hydraulic decoiler anchors the coil with expandable mandrels, supporting widths from 300 mm to 2,150 mm. Precision straighteners follow, often with 13-21 rolls to eliminate camber in cold-rolled or galvanized steel. Core to the system is the shear mechanism—hydraulic for heavy gauge (up to 25 mm thick) or servo-electric for lighter materials needing sub-millimeter accuracy.
Tension controls and loop accumulators maintain flow between uncoordinated sections, preventing tears during speed changes. The electrical backbone includes Siemens or equivalent PLCs for automation, sensors for defect detection, and safety interlocks compliant with OSHA standards. Pneumatic and hydraulic auxiliaries power lifts and stackers, ensuring the entire line operates at efficiencies over 95%.
External resources like the Fabricators & Manufacturers Association highlight how these components evolve with 2025 standards for energy-efficient drives.
CTL Line Component Comparison Table
| Component | Function | Typical Specs (Maxdo CT Series) | Best For |
|---|---|---|---|
| Hydraulic Decoiler | Unwinds coils under tension | 10-35 ton capacity, 300-2150 mm width | Heavy steel processing |

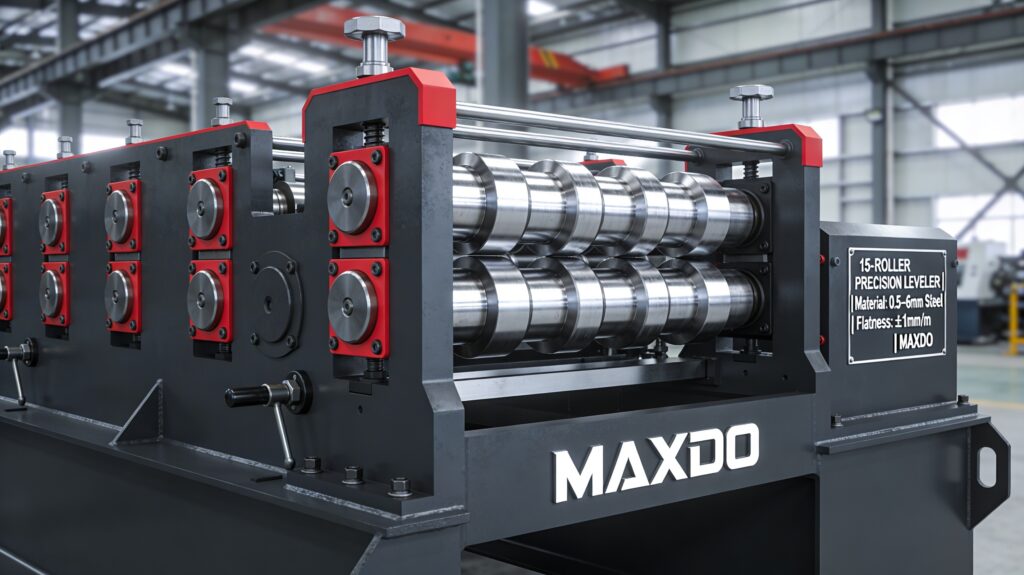

| Precision Leveler | Flattens strip to remove coil set | 13-21 rolls, 0.3-12 mm thickness | High-flatness applications |
| Servo Feeder | Measures exact lengths | ±0.1 mm accuracy, 80 m/min speed | Precision aerospace parts |
| Hydraulic Shear | Cuts sheets cleanly | Up to 25 mm gauge, 250 cuts/min | Automotive panels |
| Pneumatic Stacker | Collects and bundles output | Vacuum/magnetic, 2-ton stacks | Efficient material handling |
This setup allows customization; learn about upgrades in our automation integration guide.
Types of Cut-to-Length Lines for Different Needs
CTL lines vary by gauge and speed to match production demands. Light-gauge models (0.2-3 mm) suit high-volume runs for appliances and HVAC, often with flying shears for non-stop operation at 100+ m/min. Medium-gauge (3-8 mm) balances speed and power for construction panels, incorporating dual-levelers for mixed alloys like aluminum or stainless.
Heavy-gauge lines dominate structural applications, processing 8-25+ mm thick hot-rolled steel with stretch-leveling to counter springback—essential for shipbuilding or bridge fabrication where yields exceed 80,000 PSI. In 2025, hybrid lines with multi-blanking capabilities add slitting functions, reducing the need for separate equipment and cutting costs by 20%. For detailed comparisons, see Wikipedia’s entry on metal processing lines.
Maxdo’s CT-1350, for instance, handles 300-1,300 mm widths at 1-80 m/min with 136 kW power, ideal for mid-range versatility.
Applications of Cut-to-Length Processing in 2025 Manufacturing
Beyond basics, CTL lines fuel innovation across sectors. In automotive, they produce body panels and chassis blanks with edge-to-edge flatness, supporting EV battery tray fabrication where tolerances under 0.5 mm prevent assembly issues. Construction relies on them for roofing and framing sheets from galvanized coils, minimizing on-site trimming and waste.
Aerospace and electronics demand ultra-precision for circuit enclosures or turbine components, where integrated vision systems detect micro-defects in real-time. Emerging 2025 trends include sustainable processing for recycled metals in solar panel frames, with CTL lines optimizing yield to cut scrap by 15%. Shipyards use heavy-gauge setups for plate prep, slashing lead times by 40% as seen in recent Indonesian projects.
For tailored solutions in renewable energy, visit our heavy-gauge CTL page.
Benefits of Implementing a Cut-to-Length Line and Selection Tips
Adopting a CTL line slashes material costs by up to 25% through just-in-time sizing, while automation ensures consistent quality that manual methods can’t match. Energy-efficient models with variable-frequency drives reduce consumption by 15%, aligning with green manufacturing goals. ROI typically hits within 2-3 years via higher throughput and lower labor needs.
When selecting, evaluate coil specs—width, thickness, and alloy—against line capacity. Prioritize servo tech for speed and PLC integration for scalability. Maxdo offers models like the CT-850 (820 mm width, 93 kW) for compact setups or CT-2200 (2,150 mm, 422 kW) for large-scale operations. Contact our experts via request a quote to optimize your setup.
