Advanced Metal Slitting Lines: 96%+ Yield & Complete ROI Guide

In today’s metal processing industry, where raw materials account for up to 75% of total production costs, optimizing material yield is not merely a technical target—it is an essential driver of profitability and sustainability. Leading-edge metal slitting lines have transcended traditional mechanical approaches by integrating servo-driven rotary knife systems, multi-zone tension controls, and closed-loop digital feedback loops, delivering unparalleled precision and reducing material loss to below 4%.

This leap in technology enables manufacturers to realize consistent material yields exceeding 96%, a metric validated through extensive real-world deployments documented by MaxDoMachine.com. For instance, the MD-2200 model demonstrates slit width tolerances within ±0.1mm at speeds reaching 200 meters per minute, substantially minimizing scrap and rework. Such advancements redefine coil processing economics, slashing the conventional 12-15% material wastage norm to a fraction, thereby accelerating return on investment and operational scalability.

The Hidden Economics of Material Waste

Traditional slitting operations suffer from multiple, often unmeasured sources of material loss. Edge trim requirements in manual systems typically demand 10-15mm margins per side due to mechanical positioning limitations and operator variability. Over a 1,500mm wide coil, this conservatism alone consumes 2-4% of available material width.

Setup scrap presents another significant but poorly tracked expense. Each material changeover in conventional systems generates test strips while operators manually adjust blade positions and tension settings. The iterative nature of manual setup means multiple test cuts before achieving specification, particularly when transitioning between dissimilar materials or thicknesses.

Quality-related losses compound these direct waste streams. Inconsistent tension control creates edge wave conditions that render strips unsuitable for precision stamping applications. Similarly, worn blades produce burr conditions that require secondary deburring operations or complete material rejection. These quality costs often remain hidden within overall scrap allowances, making their true impact difficult to quantify.

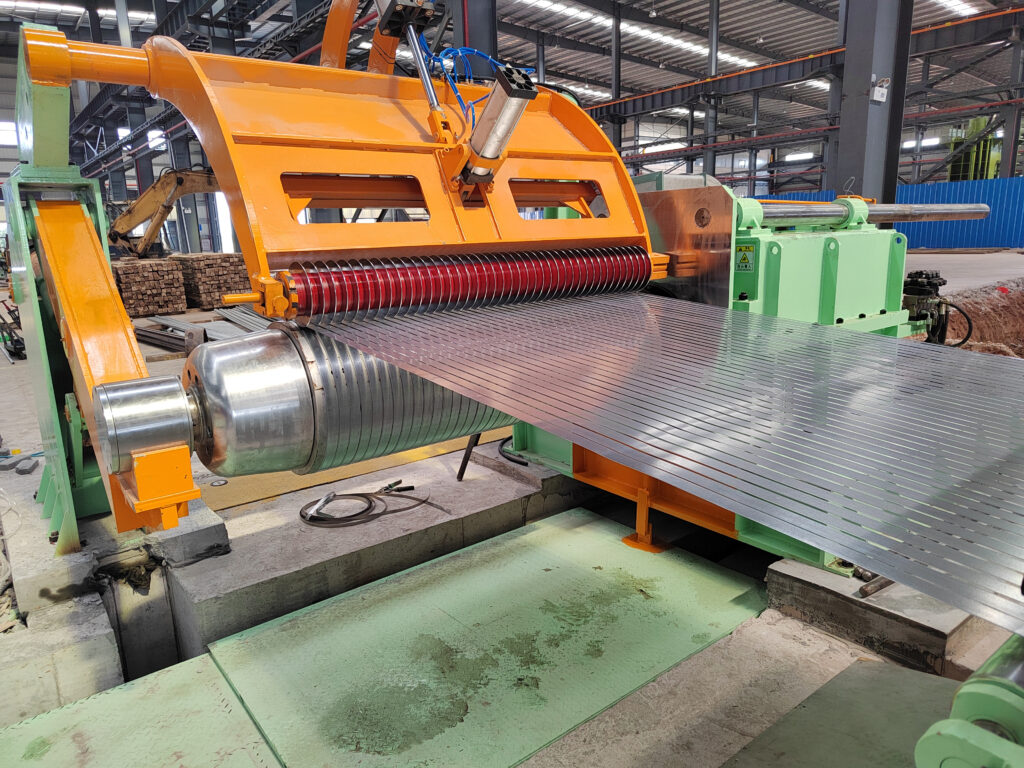

Coil end management represents perhaps the most overlooked source of material loss. Poor recoiling control during the final meters of processing frequently results in telescoped coils, loose outer wraps, and damaged material that must be downgraded or discarded entirely. For high-value materials like stainless steel or aluminum alloys, these end losses can represent substantial financial impact.

Engineering Solutions for Systematic Yield Improvement

Servo-Driven Precision Positioning

The foundation of modern material yield optimization lies in eliminating the mechanical limitations of manual blade positioning systems. Contemporary slitting lines employ servo-driven positioning mechanisms that achieve repeatability within ±0.02mm across the full working width. This precision stems from closed-loop position feedback systems that continuously monitor and correct blade locations relative to programmed specifications.

The servo positioning advantage becomes particularly evident during material changeovers. Where manual systems require iterative adjustment and test cuts, servo-controlled systems recall stored recipes and position blades to calculated specifications automatically. This capability eliminates setup scrap while reducing changeover times from 45-60 minutes to typically 8-12 minutes for standard material transitions.

Ball screw drive mechanisms, coupled with precision linear guides, maintain positioning accuracy even under the high cutting forces encountered during thick material processing. The system’s ability to compensate for blade wear through automatic position correction extends tool life while maintaining consistent strip dimensions throughout the blade’s service interval.

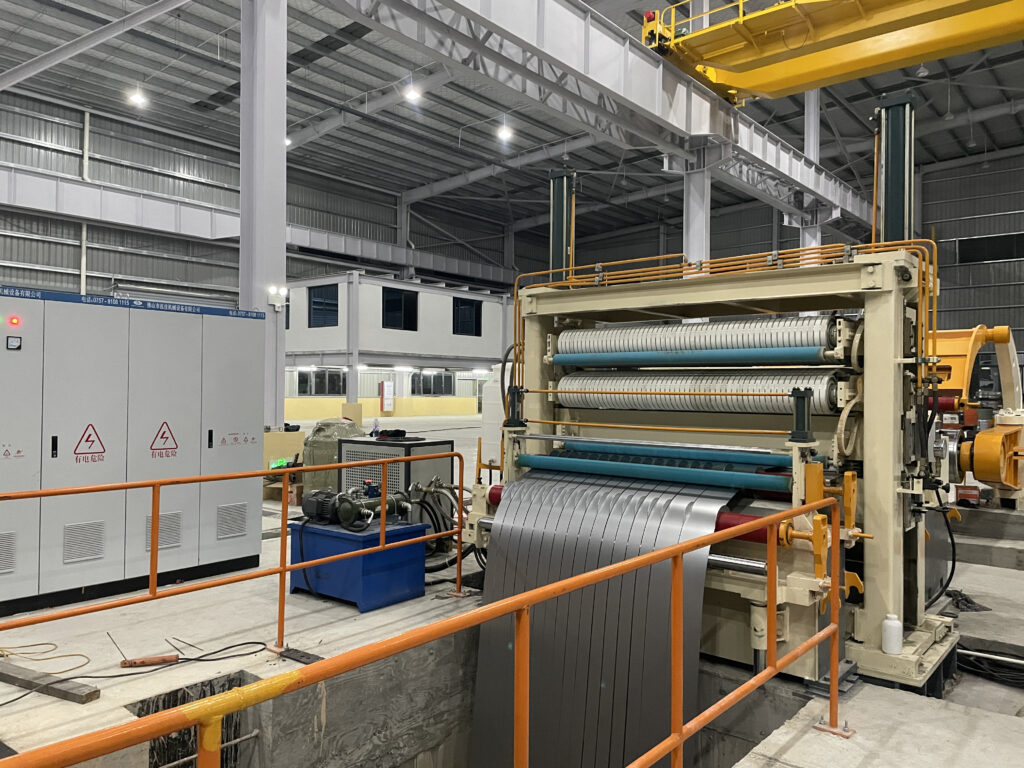

Advanced Tension Control Architecture

Material yield optimization extends beyond cutting precision to encompass the entire strip formation process. Modern tension control systems employ multiple zones of independent regulation, with entry section dancers controlling coil unwind dynamics, processing zone load cells maintaining optimal cutting conditions, and exit section systems managing recoil tension for quality coil formation.

The entry section typically operates at 150-300 N/mm tension levels, sufficient to remove coil set without inducing material yield. Processing zone tension varies by material properties, with thin-gauge materials requiring 80-120 N/mm while thicker sections may demand 200-400 N/mm for effective edge quality. Exit tension control maintains 60-150 N/mm to ensure proper recoil formation without telescoping.

PID control algorithms continuously adjust tension actuators based on load cell feedback, compensating for material property variations, speed changes, and coil diameter changes during processing. This dynamic adjustment capability maintains consistent strip quality regardless of operational variables.

Intelligent Recipe Management Systems

Contemporary slitting lines integrate comprehensive recipe storage and recall systems that eliminate operator interpretation errors while ensuring consistent setup parameters. These systems store not just blade positions, but complete processing profiles including tension maps, speed ramping sequences, and quality control parameters.

Recipe databases typically accommodate 500+ material specifications, with each recipe containing dozens of individual parameters. Beyond basic dimensional settings, recipes include material-specific cutting clearances (typically 5-8% of material thickness for steel, 3-5% for aluminum), tension profiles optimized for edge quality, and speed limitations based on material properties and blade configurations.

The recipe system’s learning capability allows continuous refinement based on actual processing results. Quality measurement feedback enables automatic parameter adjustment over time, optimizing yield performance for each specific material grade and thickness combination.

ROI Analysis Framework and Calculation Methods

Quantifying Current Material Losses

Accurate ROI assessment begins with comprehensive measurement of existing material losses. This analysis requires tracking multiple waste streams over representative production periods, typically 30-60 days to capture normal operational variations.

Input material measurement should include not just coil weights, but detailed analysis of coil dimensions, material grades, and quality specifications. Output measurement must account for finished strip weights, dimensional compliance, and quality acceptance rates. The difference between input and acceptable output represents total material loss, which often surprises facilities with its magnitude.

Trim waste calculation requires measuring actual trim widths versus theoretical minimums. Many facilities discover their conservative trim allowances significantly exceed technical requirements, representing immediate yield improvement opportunities without equipment modification.

Setup scrap measurement involves tracking material consumed during changeover procedures, including test strips, adjustment cuts, and quality verification samples. This data often reveals substantial hidden costs, particularly in facilities with frequent material changes.

Quality reject tracking should categorize losses by defect type—width variations, edge quality issues, surface defects, and dimensional non-conformance. This categorization helps prioritize improvement efforts and quantify potential savings from quality-focused upgrades.

Direct Cost Impact Assessment

Material savings calculations follow straightforward mathematical relationships, but require careful attention to actual processing economics rather than theoretical improvements. The basic calculation multiplies yield improvement percentage by annual processing volume and material cost, but practical assessment must consider material mix, seasonal variations, and market price fluctuations.

For facilities processing mixed materials, calculations should weight improvements by material cost and volume. A 2% yield improvement on high-value stainless steel creates dramatically different savings than the same improvement on commodity carbon steel.

Labor cost impacts extend beyond direct operator reductions to encompass quality control, material handling, and maintenance activities. Automated setup procedures typically reduce skilled operator requirements while eliminating the need for specialized setup personnel. Quality improvements reduce inspection labor and customer complaint resolution activities.

Indirect cost benefits include reduced customer returns, elimination of secondary processing operations, and improved delivery reliability. These benefits, while harder to quantify, often exceed direct material and labor savings in their financial impact.

Equipment Investment and Operating Costs

Modern slitting line investments vary significantly based on processing requirements and automation levels. Based on MaxdoMachine specifications, equipment costs range from approximately $400,000 for compact MD-850 systems to $1,500,000+ for fully automated MD-2200 configurations with advanced material handling.

Installation costs typically add 15-25% to equipment costs, depending on facility modifications required. Electrical infrastructure upgrades, foundation work, and safety system integration contribute to these expenses. Training costs, while relatively modest, deserve careful planning to ensure effective technology adoption.

Operating cost comparisons should include energy consumption, maintenance requirements, and consumable costs. Modern servo-driven systems typically consume 20-30% less energy than hydraulic predecessors while requiring less frequent maintenance due to reduced wear rates in precision components.

Technical Implementation Considerations

Processing Requirements Analysis

Equipment selection requires detailed analysis of current and projected processing requirements. Material thickness ranges significantly impact equipment complexity and cost, with systems designed for thin-gauge processing (0.3-3mm) differing substantially from heavy-gauge capabilities (up to 12mm).

Width requirements determine basic equipment architecture, but facilities should consider future expansion needs rather than optimizing solely for current production. The cost differential between width capabilities often justifies selecting larger capacity equipment for operational flexibility.

Speed requirements depend on production volumes and material changeover frequency. High-speed capability becomes particularly valuable for thin-gauge, high-volume applications where processing speed directly impacts throughput economics.

Material grade compatibility affects blade selection, tension control requirements, and quality monitoring systems. Facilities processing both soft aluminum and hard stainless steel require different technical approaches than single-material operations.

Integration and Workflow Optimization

Successful slitting line implementation requires careful integration with existing production workflows. Upstream coil handling, inspection, and preparation processes must accommodate new equipment requirements while maintaining production continuity.

Quality control integration deserves particular attention, as improved processing capabilities often require upgraded measurement systems to verify enhanced performance. Statistical process control implementation helps optimize new equipment capabilities while providing documentation for customer quality requirements.

Downstream handling and shipping processes may require modification to accommodate improved material quality and different coil characteristics. Better edge quality and dimensional consistency can enable different packaging approaches or customer delivery methods.

Performance Monitoring and Optimization

Contemporary slitting lines incorporate extensive monitoring capabilities that enable continuous performance optimization. Real-time data collection includes dimensional measurements, quality parameters, and operational efficiency metrics.

Key performance indicators should encompass material yield, energy consumption per unit processed, changeover time efficiency, and overall equipment effectiveness (OEE). These metrics provide objective measurement of improvement achievements while identifying opportunities for further optimization.

Predictive maintenance systems monitor component wear patterns and operational parameters to optimize maintenance scheduling. This capability reduces unplanned downtime while extending component life through optimal maintenance timing.

Industry Applications and Technical Considerations

Automotive Industry Requirements

Automotive applications demand exceptional dimensional consistency and edge quality due to downstream stamping requirements. Typical tolerance specifications of ±0.1mm width variation challenge conventional slitting capabilities but align well with modern servo-controlled systems.

High-strength steel processing for structural automotive components requires specialized blade materials and cutting parameters. These materials’ work-hardening characteristics demand precise control of cutting clearances and blade sharpness to prevent edge cracking or dimensional distortion.

Just-in-time delivery requirements in automotive supply chains place premium value on changeover speed and production flexibility. Recipe-based setup systems enable rapid transitions between part numbers while maintaining quality consistency.

Steel Service Center Operations

Steel service centers typically process diverse material specifications with frequent changeovers, making setup efficiency critical for operational profitability. Advanced slitting systems’ recipe management and rapid changeover capabilities directly address these operational requirements.

Inventory optimization in service center operations benefits from improved material yield through reduced safety stock requirements. Better yield predictability enables more aggressive inventory management while maintaining customer service levels.

Customer quality requirements in service center markets continue escalating, with many specifications now demanding edge quality and dimensional consistency previously reserved for specialized applications. Modern slitting technology provides the capability to meet these evolving standards.

Specialized Material Processing

Aluminum and non-ferrous alloy processing presents unique challenges due to these materials’ different mechanical properties compared to steel. Aluminum’s tendency toward built-up edge formation requires specialized blade coatings and cutting parameters optimized for non-ferrous applications.

Stainless steel processing demands attention to work-hardening prevention and contamination control. Blade material selection and cutting speed optimization become critical for maintaining edge quality while achieving acceptable tool life.

Coated materials, increasingly common in various industries, require processing techniques that preserve coating integrity while achieving required dimensional precision. This often involves modified tension profiles and specialized material handling procedures.

Financial Justification and Risk Assessment

ROI Modeling and Sensitivity Analysis

Comprehensive ROI models should incorporate multiple scenarios reflecting operational variables and market conditions. Base case assumptions should use conservative improvement estimates while best case scenarios reflect optimization potential over time.

Sensitivity analysis helps identify critical variables affecting project viability. Material costs, processing volumes, and yield improvement achievements typically represent the most significant variables affecting ROI outcomes.

Risk assessment should consider technology obsolescence, market demand changes, and competitive factors. Modern slitting line investments typically provide 15-20 year service lives, requiring long-term perspective on market requirements and technology trends.

Implementation Timeline and Cash Flow

Deployment of advanced metal slitting lines typically spans 16 to 24 weeks, varying with system complexity and necessary facility adaptations. This timeline reflects not only equipment installation but also critical phases such as precision calibration, operator training, and process integration. Financial forecasting should prudently incorporate these factors alongside the initial productivity dip caused by learning curves, with full operational efficiency commonly reached within 6 to 12 months post-installation.

For manufacturers facing capital constraints, flexible financing options—including leasing programs backed by favorable tax incentives—offer practical pathways to acquiring cutting-edge slitting technology without compromising cash flow. However, ownership remains the strategic choice for maximized long-term ROI, as demonstrated by case studies where companies utilizing MaxDoMachine’s MD series achieved payback periods under 18 months due to material savings and enhanced throughput.

The accelerating evolution in metal processing is propelled by relentless demand for tighter tolerances, cost efficiencies, and sustainability. By investing in precision-engineered slitting lines equipped with servo-driven controls, real-time tension monitoring, and automated blade setup, fabricators secure a significant competitive edge. This transformation is not merely an upgrade but a fundamental shift, enabling facilities to future-proof operations and sustainably thrive in increasingly demanding global markets.
